₹1451.20 Only Subwoofer

Tell me your Pin Code, I will find your delivery date ➡︎

₹3366 With Box fitting

For Box specifications Click here

FREE delivery. No hidden charges

___________________________________________________

₹ Money Back PROMISE  100% delivery guarantee

➹ Branded Courier tracking  W Solid Wood packing

C Cash back on Prepaid orders

For prepaid orders. What"s Covered?

Defective Piece - The product delivered is defective
Quality Concerns - Item doesn't match description
Issues/Damaged - Item fails to arrive or damaged

___________________________________________________

For Orders outside India:

Price: $ 16.78

Shipping for International Orders: $ 25.71 per Kg

___________________________________________________

Shipping Method and Speed ➞

__________________________________________________

Product Specifications :-

Diameter - 25.5 cm ( 10 inch)

Height - 14 cm (5.51 inch) - with elevated back plate

Height - 5.51 Inch

Weight - 2.4 Kgs

Use - Car/Studio/Home Audio

Driver Type - 10 inch Subwoofer

Chassis Material - Stamped CR steel, powder coated.

Heavy Chassis for Base

Cone Material - Non pressed paper. Stitched cone.

Stitched Paper Cone

Voice coil Material - Pure copper, resistive to high temperatures. Diameter 1.5 inch. Winding 4 Layer.

4 Layer Single Voice Coil

Magnet Material - Y30 grade single ferrite. Outer Dia 120 mm. Inner Dia 57 mm and Thickness 20 mm.

Single 120 mm Magnet

Packing Material - Wood.

Warranty - 1 year / 7 days replacement.

Power Ratings :-

Impedance - 4 Ohms

Nominal Power - 165 W

Peak/Shorting Power - 825 W

RMS Power - Nominal Power (165) x 0.707 = 117 W

TS Parameters Electrical :-

Q mechanical - 10.1

Q electrical - 0.29

Q total - 0.28

Resonance Frequency - 23 Hz

X Max - 12 mm

BL, motor strength - 12.6 Tesla meter

SPL (2.83V @ 1 meter) - 90 dB

TS Parameters Mechanical :-

Voice coil Dia - 50 mm (with winding)

Voice coil layers - 4

VC material & Gauge - Copper 36 gauge

VC cylinder - Kapton paper of 40 mm dia

Surround Material - Rubber/Extra large foam for bass

Chassis - Stamped steel, powder coated.

Dust Cap - Paper

Top foam ring height - 8.7 mm

Connections :-

Push fit, steel terminals

Recommended Amplifier :-

Any DJ Amplifier

60 W board TPA3116 circuit.

Recommended Box volume :-

L Port type with 44 litre volume (1.55 cubic feet)

Link

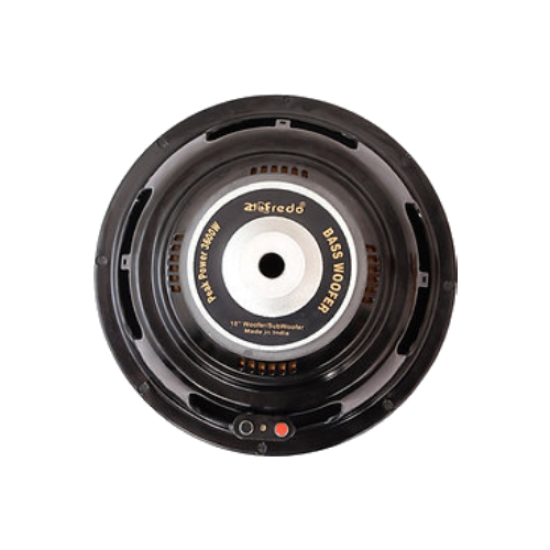

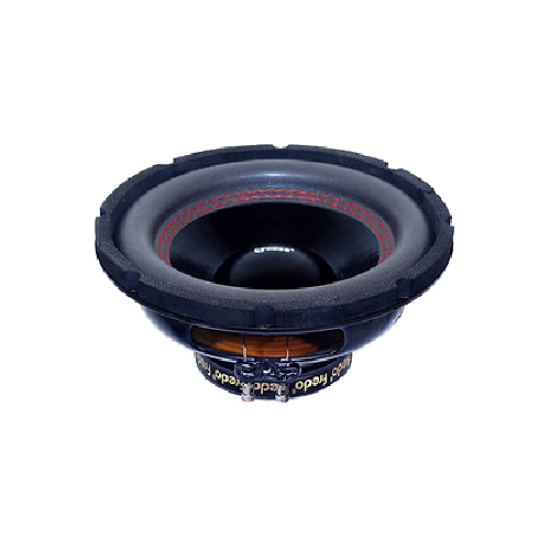

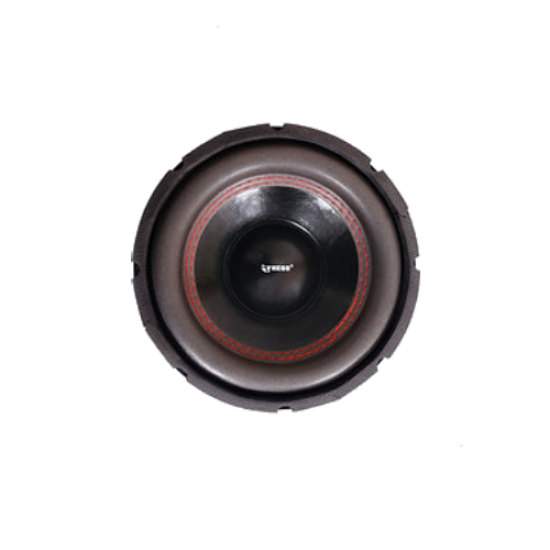

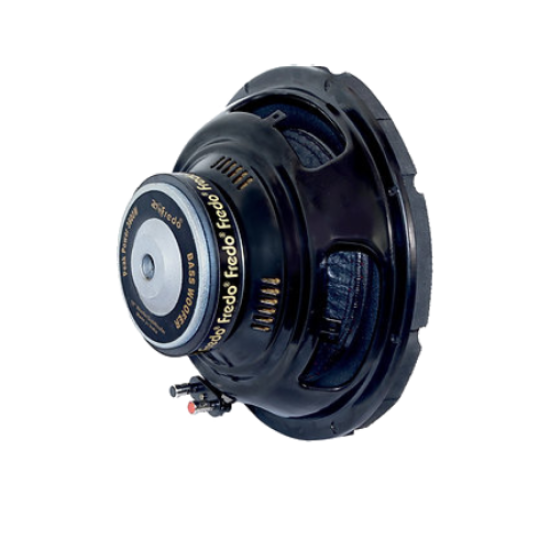

Product Pictures :-

Secure Transactions :-

Our Razorpay payment security system encrypts your information during transmission. We do not share your credit card details with third party sellers.

Fredo Speakers Trust Seal

Customer Care 9840024579

Payment options :-

UPI - Google Pay/PayTM/PhonePE/CredUPI

All Debit & Credit cards/EMI/Net Banking

Wallets - Amazon Pay/Mobikwik/PhonePE

Pay Later by HDFC

Lazy pay by ICICI

Returns :--

In case of physical damage, defective or wrong item, we REPLACE the items within 7 days of delivery

Return Policy :-

Replacement

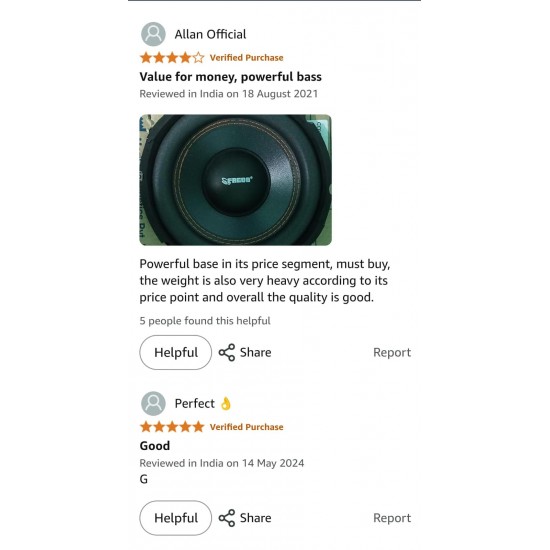

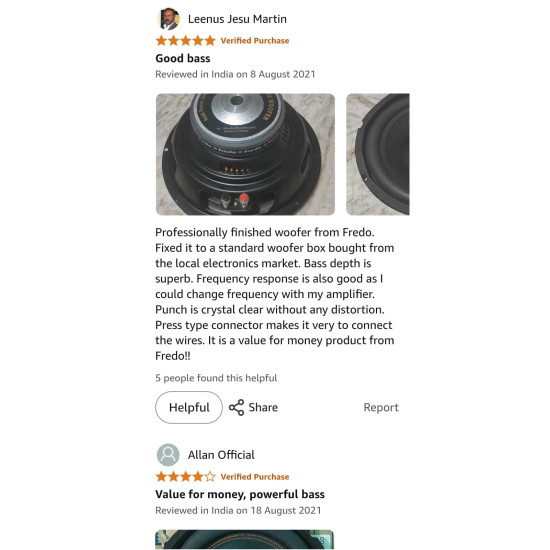

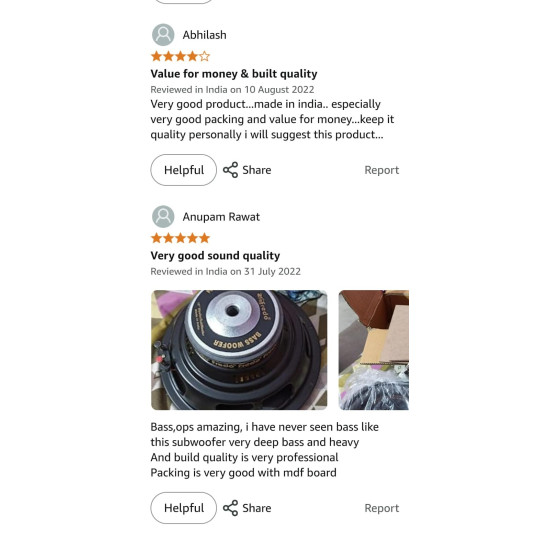

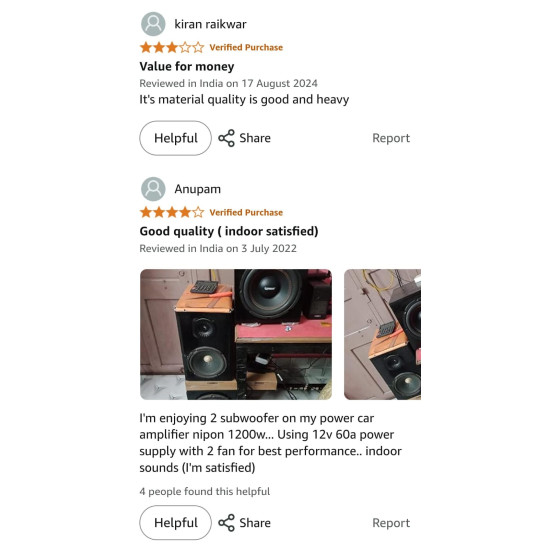

Customer Reviews :-
