Product Specifications :-

Diameter - 16.5 cm (6.5 inch)

Height - 8.2 cm (3.2 inch)

Height 8.2 cm

Weight - 1 Kg

Use - Car/Home Audio.

Type - 6.5 inch Subwoofer

Use for DIY/Home Theater stock subwoofer replacement

Chassis Material - Stamped CR steel. Heavy chassis.

Cone Material - Polypropylene

Polypropylene cone

Voice coil Material - Pure copper, resistive to high temperatures. Diameter 1 inch. Winding 4 Layer.

Magnet Material - Y30 grade single ferrite. Outer Dia 90 mm and Thickness 17 mm

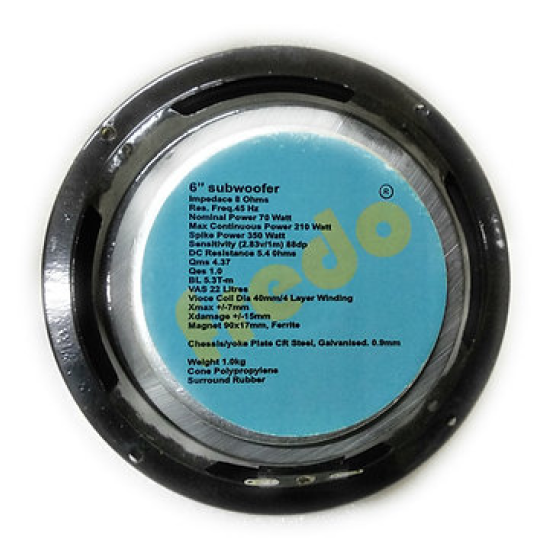

TS Parameters Electrical:-

Nominal Impedance: 8 Ohms

Resonance Frequency: 45 Hz

DC Resistance: 5.4 Ohms

Qms: 4.37

Qes: 1.0

Qts: 0.62

BL: 5.3 T-M

VAS: 22 Litres

TS Parameteres Mechanical :-

Voice Coil Dia: 40mm/4 Layer winding

Xmax: +/- 7mm

Xdamage: +/- 15mm

Magnet: 90x17mm, ferrite

Chassis/Yoke Plate: 0.9mm Galvanised, CR steel and later powder coated

Cone: Polypropylene

Surround: Rubber

Packing Material - Wood.

Warranty -  1 year / 7 days replacement.

Power Ratings :-

Impedance - 8 Ohms

Nominal Power - 70 W

Peak/Shorting Power - 350 W

RMS Power - Nominal Power (70) x 0.707 = 49 W

Connections - Steel tags

Frequency response - 40 Hz to 160 Hz

Sensitivity (2.83V @ 1 meter) - 88 dB

Recommended Amplifier :-

Any Bass Amplifier of RMS 45 W

Ahuja SSA250dp.
